DD Audio Subwoofer Breakdown: Reliability, Power Handling, and Box Specs

As Amazon Associates, we earn from qualifying purchases. This means we may receive a small commission at no extra cost to you if you click through and make a purchase.

DD Audio Subwoofers Compared

01 Digital Designs DD Audio 608F-D4 8" for High-Output Compact Enclosures

Best for: Balanced daily bass in ported enclosures

Pros

• Substantial 3-inch voice coil
• Clean 700W RMS thermal limit
• Controlled 18 mm Xmax stroke

Cons

• Listing does not specify sealed use
• Requires dedicated ported enclosure

Best for: Moderate power systems on stock alternators

Pros

• Efficient 500W RMS power rating
• Manageable 4.875-inch mounting depth
• Fiberglass-loaded reinforced cone

Cons

• Higher 44 Hz resonant frequency
• Modest 14 mm linear excursion

Best for: High-power daily street bass enthusiasts

Pros

• 1800W RMS continuous power rating
• Generous 26 mm Xmax excursion
• G-revision reinforced motor structure

Cons

• Heavy 45-pound single driver
• Demands high-current amplification

Best for: Dual-subwoofer setups with compact airspace

Pros

• Sold as matched pair
• Cast-aluminum dual-stage heatsink
• Triple-layer spider system

Cons

• Requires multi-subwoofer wiring
• High total weight for 8-inch drivers

Supplied as a matched pair, the Digital Designs DD Audio 608F-D4 8″ package delivers a combined power handling rating of 1000 watts RMS and a 3000-watt maximum peak threshold. The F-revision design introduces tangible mechanical enhancements over earlier iterations, implementing taller double-stitched surrounds, fiberglass-loaded non-pressed pulp cones, and an integrated cast-aluminum dual-stage heat sink. At the core of the motor assembly, DD Audio integrates its Free Flow Cooling geometry alongside an extended pole piece, which works in unison with a triple-layer spider suspension to keep the high-temperature voice coil strictly centered throughout violent low-frequency transients.

Thermal management is the primary failure defense on the 608F-D4. By utilizing dual-stage aluminum heat dissipation, the motor extracts heat away from the voice coil gap before thermal compression degrades output efficiency. Buyers evaluating a dd audio 8 inch subwoofer must recognize that this configuration provides two physical drivers, creating an aggregate weight of 41 pounds. Wiring two dual 4-ohm drivers gives installers the flexibility of a 1-ohm or 4-ohm final mono amplifier load, but it doubles the necessary baffle surface area inside the vehicle.

This dual-driver package suits audiophiles and bass enthusiasts who want substantial displacement and cone area without sacrificing trunk floor depth. However, because the package requires dual cutouts and a carefully constructed dual-chamber or common-chamber ported enclosure, buyers constrained by single-driver cutouts or shallow under-seat cavities will be better served by the single shallow SL710 or the single 508E driver.

02 DD Audio SL710-D2 10" Slim Shallow for Tight Cabins and Under-Seat Spaces

Best for: Truck cabs and tight under-seat installs

Pros

• Shallow 5.125-inch mounting depth
• Heavy-duty 3-inch voice coil
• Sealed or ported enclosure flexibility

Cons

• Higher 41 Hz resonant frequency
• Demands precise enclosure airspace

The DD Audio SL710-D2 10″ Slim Shallow is engineered to solve severe cabin clearance limitations without abandoning thermal reliability. Featuring a shallow mounting depth of 5.125 inches and a 9.375-inch mounting cutout, this subwoofer integrates a 3-inch high-temperature copper voice coil into a compact cast-aluminum basket. The motor assembly employs a 170 mm double magnet with a bumped back plate and Free Flow Cooling vents, paired with dual-layer spiders featuring integrated tinsel leads, an EROM surround, and a water-resistant treated non-pressed paper cone.

Shallow subwoofers are notorious for thermal failure due to cramped motor cavities and restrictive enclosures. DD Audio addresses these physical risks by engineering 19 mm of linear Xmax and 40 mm of peak mechanical Xmech into the suspension, allowing generous excursion for a slim-profile driver. Enclosure volume tolerances are versatile: DD Audio specifies a net internal volume of 0.5 to 1.0 cubic feet for sealed enclosures and 0.5 to 1.25 cubic feet for vented enclosures, with a tiny driver displacement of 0.06 cubic feet. Detailed analysis of a dd audio 10 inch subwoofer reveals that shallow drivers demand precise subsonic filtering to prevent bottoming out the back plate.

This driver suits pickup truck owners, sports car drivers, and stealth audio builders needing true 1000-watt RMS thermal handling behind or under seats. However, its resonant frequency of 41 Hz makes it slightly less responsive to deep infrasonic rumble than full-depth ground-pounders, meaning builders with unrestricted cargo room should bypass this slim frame for the deeper 710G-D4.

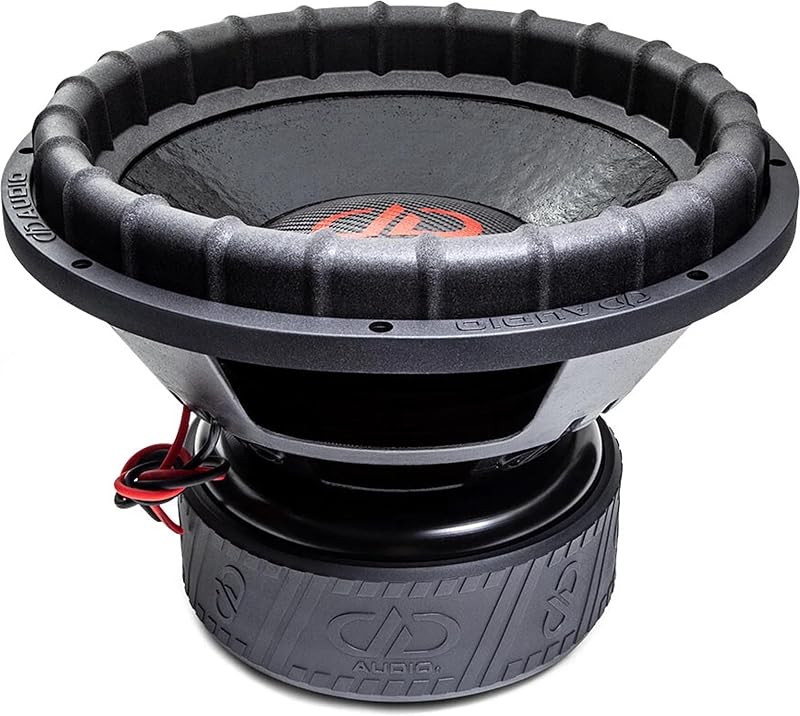

03 DD Audio 9915C-D1 15" USA Made for Competition SPL Builds

Best for: SPL competition and extreme power builds

Pros

• Handcrafted USA build quality
• Immense 3200W RMS power handling
• Massive 4.3-inch voice coil

Cons

• Weighs 87 pounds
• Requires extensive electrical upgrades

Constructed in the United States, the DD Audio 9915C-D1 15″ USA Made represents the extreme pinnacle of heavy-duty acoustic engineering. This 87-pound competition transducer boasts a continuous thermal threshold of 3200 watts RMS and a massive 9600-watt peak capacity. The motor structure incorporates a 260 mm magnet diameter, a dual-stage aluminum motor heat sink, Multi-Vent Free Flow cooling channels, and an internal shorting ring. Its moving assembly features an excursion-optimized ESP cast frame, a 4.3-inch high-temperature voice coil, an 11-inch multi-layer iron-cloth spider pack, laminated tinsel leads, and a V-ROM vario-density surround bonded to a composite-reinforced pulp cone.

Operating a subwoofer of this caliber demands severe respect for vehicle electrical stability and box construction. The 9915C-D1 requires a 15.19-inch cutout, a 10.31-inch mounting depth, and displaces 0.40 cubic feet of internal box volume on its own. DD Audio specifies net ported enclosure airspace between 3.0 and 6.0 cubic feet. Squeezing this transducer into an undersized box or driving it with an unbuffered electrical system will induce severe amplifier clipping, running the risk of blistering the 4.3-inch voice coil windings despite the shorting ring and multi-vent cooling array.

The 9915C-D1 is tailored exclusively for dedicated SPL competition competitors and extreme bass demonstration vehicles equipped with high-output alternators and auxiliary lithium battery banks. Casual daily listeners will find the massive 87-pound motor unmanageable, making the standard 710G-D4 or 510E-D4 a far more practical selection for conventional passenger vehicles.

04 Digital Designs DD Audio 710G-D4 10" for Heavy Daily Ground-Pounding

The Digital Designs DD Audio 710G-D4 10″ is a dedicated power-tuned daily subwoofer designed to deliver high sound pressure levels over long listening sessions. Weighing 45 pounds, the 710G incorporates DD Audio’s G-revision motor upgrades, which consist of a thicker top plate, a deeper magnetic gap, an enlarged magnet assembly, and a lengthened voice coil. These mechanical enhancements yield an impressive 26 mm of linear Xmax, backed by an 1800-watt RMS continuous power rating and a 4500-watt peak rating across its dual 4-ohm voice coil configuration.

The G-revision upgrades directly address voice coil rock and thermal breakdown during heavy bass drops. By deepening the magnetic gap and thickening the top plate, the 3-inch voice coil stays immersed in a uniform magnetic flux field throughout its extended 26 mm stroke. This precise magnetic centering prevents mechanical distortion and voice coil rubbing when driven near maximum excursion. The heavy motor mass absorbs and dissipates thermal energy efficiently, though clean amplifier gain calibration remains mandatory to avoid sending clipped, DC-offset signals into the motor.

This 10-inch driver is ideal for bassheads who demand ground-pounding low-frequency reproduction from a standard 10-inch baffle but have the trunk depth to support a massive 45-pound motor. Where cargo space or amplifier budgets do not allow for an 1800-watt continuous electrical draw, this driver gives way to the lighter, more efficient 510E-D4.

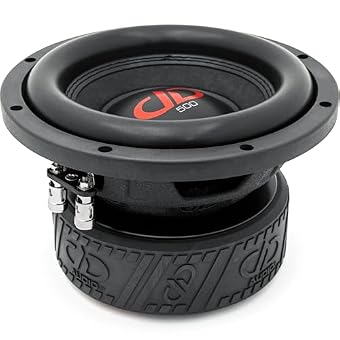

05 Digital Designs DD Audio 508E-D2 8" for Entry Daily Bass Upgrades

Designed for daily listening systems operating on factory charging systems, the Digital Designs DD Audio 508E-D2 8″ delivers genuine DD Audio build quality in an accessible 15-pound package. The e-revision update equips this 8-inch driver with a 2.5-inch high-temperature voice coil, a 100-ounce magnet, an extra 12 mm of top plate steel, and extended coil windings. Rated at 500 watts RMS and 1500 watts peak, the 508E-D2 incorporates Free Flow Cooling, an extended pole piece, a dual-layer spider system with integrated leads, and a double-stitched EROM surround anchoring a fiberglass-loaded non-pressed pulp cone.

The electro-mechanical parameters of the 508E-D2 emphasize control and quick transient punch. Featuring a resonant frequency (Fs) of 44 Hz, an Xmax of 14 mm, a mechanical clearance (Xmech) of 22 mm, and a motor force (BL) of 24 TM, this subwoofer thrives in small custom enclosures. Its physical dimensions are installer-friendly, requiring a 7.125-inch mounting diameter and a modest 4.875-inch mounting depth. The dual 2-ohm voice coil format allows users to wire the subwoofer down to a 1-ohm load on small monoblock amplifiers or up to 4 ohms for multi-channel bridging.

This driver is suited for commuters and daily drivers looking to add responsive, tactile low-end without upgrading factory alternators or relinquishing cargo capacity. While exceptionally capable within its 500-watt thermal ceiling, listeners chasing heavy infrasonic output below 35 Hz will find the driver limited by its 14 mm Xmax and higher resonant tuning, yielding to the larger 510E-D4 or 608F.

06 Digital Designs DD Audio 510E-D4 10" for Balanced Everyday Output

The Digital Designs DD Audio 510E-D4 10″ expands on the e-revision platform by pairing a 10-inch frame with an upgraded 3-inch high-temperature voice coil and a 120-ounce magnet assembly. Rated at 700 watts RMS with a 2100-watt peak ceiling, this dual 4-ohm driver delivers a robust balance of thermal capacity and cone area. Standard features include DD Audio’s Free Flow Cooling system, an extended pole piece, a dual-layer spider assembly with interwoven tinsel leads, and a rugged double-stitched EROM surround securing a fiberglass-reinforced non-pressed paper cone.

Acoustic performance is reinforced by sensible enclosure requirements. DD Audio recommends mounting the 510E-D4 into a net ported enclosure volume of 1.25 to 1.5 cubic feet, accounting for the driver’s small 0.07 cubic foot physical displacement. The driver features an Fs of 38 Hz, an Xmax of 18 mm, an Xmech of 30 mm, a motor force of 25 TM, and a mounting depth of 5.9 inches (with listings noting up to 6 inches depending on gasket compression) into an 8.93-inch cutout. This combination lets the cone track sub-bass notes smoothly without bottoming out the suspension.

The 510E-D4 represents the practical sweet spot for everyday vehicle audio upgrades, bridging the gap between modest power consumption and chest-thumping low-end extension. It provides noticeably deeper bass response than the 8-inch 508E, but it naturally gives way to the 1800-watt 710G-D4 for users who run high-output multi-battery electrical systems and demand extreme excursion.

How to Choose the Right DD Audio Subwoofer

Selecting the optimal DD Audio driver requires aligning your vehicle’s physical dimensions and electrical infrastructure with the mechanical needs of each model. DD Audio subwoofers are stiffly suspended, low-distortion transducers that deliver their best acoustic performance only when supplied with adequate airspace and clean, unclipped amplification. Consider the following critical parameters before finalizing your purchase:

• Enclosure Airspace and Construction: Enclosure requirements vary dramatically across the DD Audio catalog. While the slim SL710 operates comfortably in a sealed box as small as 0.5 cubic feet or a ported box up to 1.25 cubic feet, traditional drivers like the 510E-D4 require 1.25 to 1.5 cubic feet of net ported volume. Massive competition drivers like the 9915C-D1 consume between 3.0 and 6.0 cubic feet of net ported volume, excluding driver displacement. Building an enclosure out of dense 0.75-inch MDF with internal bracing is essential to prevent wall flex under DD Audio’s high internal box pressures.
• Vehicle Electrical System and Amplifier Sizing: Respecting DD Audio power handling limits protects voice coils from clipping-induced thermal failure. The 500-watt 508E-D2 and 700-watt 510E-D4 run reliably on standard factory alternators paired with clean 4-gauge power wire. Conversely, the 1800-watt 710G-D4 and 3200-watt 9915C-D1 demand dedicated high-output alternators, 1/0-gauge pure copper cabling, and secondary AGM or lithium battery reserves to prevent severe voltage drop below 12 volts.
• Physical Mounting Depth and Cabin Clearance: Always measure the clear depth behind your mounting baffle before buying. The SL710 provides a slim 5.125-inch mounting depth suitable for truck cabins, and the 508E-D2 requires just 4.875 inches. In stark contrast, full-frame drivers like the 9915C-D1 need 10.31 inches of clearance and substantial clearance behind the motor vent to allow the Free Flow Cooling system to breathe.
• Voice Coil Configuration and Final Impedance: Match your amplifier’s lowest stable impedance rating with the subwoofer’s voice coil configuration. Dual 2-ohm subwoofers like the SL710-D2 and 508E-D2 wire in parallel to a 1-ohm mono load, whereas dual 4-ohm drivers like the 710G-D4 and 510E-D4 wire to either 2 ohms or 8 ohms as a single driver, or 1 ohm when bought in identical pairs like the 608F-D4 package.
