DD Audio 10-Inch Subwoofer Comparison: Power Handling, Enclosures, and Reliability

As Amazon Associates, we earn from qualifying purchases. This means we may receive a small commission at no extra cost to you if you click through and make a purchase.

DD Audio 10-Inch Subwoofers Compared

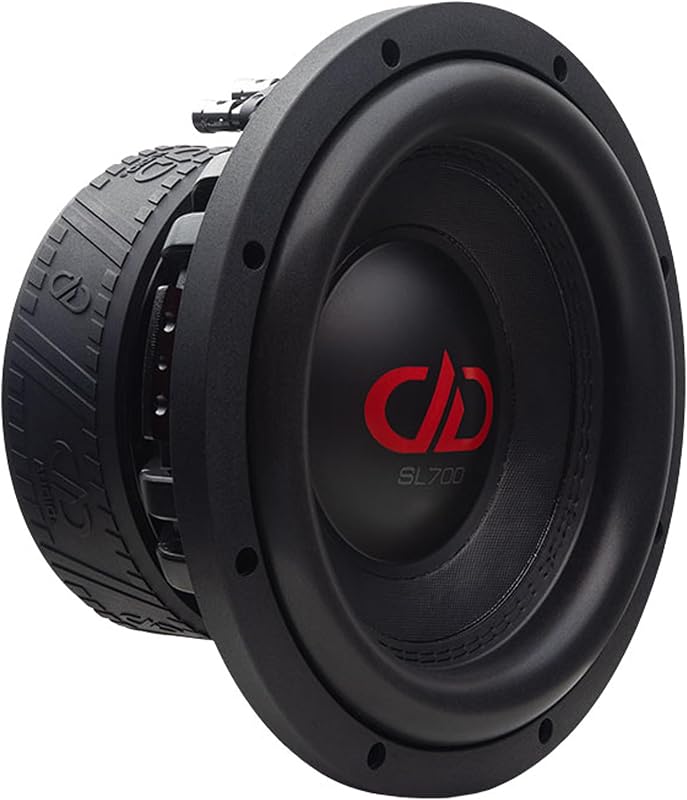

01 DD Audio SL710-D2 10" Slim Shallow for Space-Constrained Enclosures

Best for: Truck cabs and depth-limited installations

Pros

• Shallow 5.125-inch mounting depth
• High 1000-watt RMS thermal capacity
• Dual-layer spider with stitched leads
• Sealed or ported enclosure flexibility

Cons

• Higher 41 Hz resonant frequency
• Requires substantial amplifier power

The DD Audio SL710-D2 10″ Slim Shallow is engineered for vehicle spaces where mounting depth is strictly constrained but genuine high-power output remains essential. While typical shallow subwoofers compromise on motor size and heat dissipation, this SL700 series unit integrates a 170mm double magnet motor with a bumped back plate into a 5.125-inch mounting depth. Equipped with a 3-inch high-temperature copper voice coil and Free Flow cooling vents, it delivers an authentic 1000-watt continuous RMS rating.

Mechanically, the driver achieves 19 mm of linear one-way Xmax and 40 mm of mechanical travel (Xmech), controlled by dual-layer spiders with integrated tinsel leads. Its cone combines a water-resistant treated non-pressed pulp body with an extended-range EROM surround. Specifications recommend 0.5 to 1.0 cubic feet net sealed or 0.5 to 1.25 cubic feet net ported volume, with a 0.06 cubic foot displacement. A 41 Hz resonance and 0.57 Qts provide tight, controlled transient response.

This shallow model best suits truck owners and stealth-install builders requiring high power handling in compact under-seat enclosures. However, its stiffer suspension and 41 Hz resonant frequency trade off the deepest sub-30 Hz rumble. When enclosure depth permits a standard 6-inch profile, listeners seeking fuller low-end authority will find greater low-bass performance in the Digital Designs DD Audio 510E-D4 10″.

02 Digital Designs DD Audio 510E-D4 10" for Daily Ported Performance

Best for: Ultra-compact spaces demanding high excursion

Pros

• Cast-aluminum dual-stage heat sink
• Triple-layer deep-bass spider pack
• Massive 60 mm mechanical clearance
• 1000-watt RMS thermal rating

Cons

• Smaller 8-inch cone radiates less air volume
• Enclosure volume specifications not listed

Best for: Stock electrical systems and moderate power

Pros

• Efficient operation on 250 to 500W RMS
• Dual-layer spider with integrated leads
• Free Flow Cooling ventilation
• Solid 100-ounce magnet motor

Cons

• Moderate 14 mm linear excursion limit
• Large 11.02-inch cutout diameter

Best for: Heavyweight SPL competitors and extreme output

Pros

• Massive 1800-watt RMS power rating
• Extended 26 mm linear Xmax
• Heavy-duty 45-pound motor assembly
• Upgraded G Revision magnetic gap

Cons

• Heavy 45-pound weight requires reinforced baffle
• Demands vehicle electrical upgrades

Best for: Everyday ported street bass systems

Pros

• Substantial 120-ounce motor assembly
• 3-inch high-temperature voice coil
• Free Flow Cooling ventilation
• Double-stitched EROM surround

Cons

• Demands up to 1.5 cu ft ported enclosure
• Unsuitable for shallow spaces

The Digital Designs DD Audio 510E-D4 10″ delivers balanced everyday street bass, operating on a 700-watt RMS continuous rating and a 2100-watt peak maximum. Positioned in the e-revision update, this subwoofer features a substantial 120-ounce magnet assembly protected by an embossed rubber boot and supported by a stamped DD logo basket. Thermal management is handled by an extended pole piece and Free Flow Cooling vents that route heat away from the 3-inch high-temperature voice coil.

The moving assembly pairs a fiberglass-loaded non-pressed cone to a double-stitched EROM surround, stabilized by a dual-layer spider system with stitched tinsel leads. Published dd audio 10 inch sub specs show a 38 Hz resonant frequency, 18 mm Xmax, 30 mm Xmech, and a motor force factor of 25 TM. DD Audio recommends a 1.25 to 1.5 cubic foot net ported enclosure with a 0.07 cubic foot displacement, an 8.93-inch cutout, and a 5.9-inch mounting depth.

This model serves listeners running a 600 to 800-watt continuous amplifier who want deeper low-frequency extension than shallow woofers can muster. However, its demand for up to 1.5 cubic feet of ported airspace requires meaningful trunk room. For competition builds with high-output electrical systems delivering upwards of 1500 watts RMS, this driver gives way to the massive Digital Designs DD Audio 710G-D4 10″.

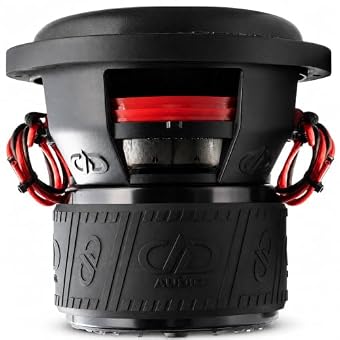

03 Digital Designs DD Audio 710G-D4 10" for Heavyweight Competition Output

The Digital Designs DD Audio 710G-D4 10″ sits at the pinnacle of thermal capacity and linear excursion in the brand’s ten-inch lineup. Weighing an immense 45 pounds, this competition-focused subwoofer is rated for 1800 watts RMS continuous power and handles dynamic peaks up to 4500 watts. DD Audio engineered the G Revision specifically to deliver exceptional voice coil control and heat dissipation during prolonged sound pressure demos.

The G Revision upgrades introduce an enlarged magnet assembly, a thicker top plate, a deeper magnetic gap, and a longer 3-inch voice coil winding. These structural enhancements provide 26 mm of linear one-way Xmax, keeping the coil centered in the magnetic gap under extreme travel. The motor mass functions as a massive heat sink during heavy operation. While box volume is not listed, the 45-pound chassis requires a reinforced double-baffled enclosure.

This driver is built strictly for SPL competitors and serious bass enthusiasts equipped with heavy-gauge wiring and auxiliary battery reserves. It is entirely overbuilt for mild factory charging systems. Buyers seeking clean musical bass from a standard 300 to 500-watt daily amplifier should bypass this heavy platform and select the accessible Digital Designs DD Audio 310E-D4 10″.

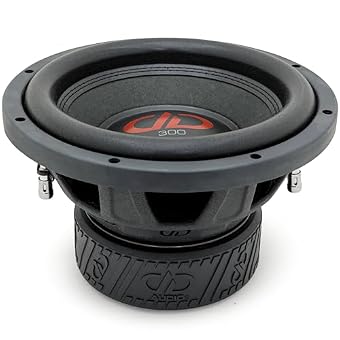

04 Digital Designs DD Audio 310E-D4 10" for High-Efficiency Daily Systems

The Digital Designs DD Audio 310E-D4 10″ is designed to generate impressive acoustic output from moderate electrical power, operating efficiently between 250 and 500 watts RMS with a 1500-watt peak rating. Part of the 300 Series e-revision, this 16-pound subwoofer combines a 100-ounce magnet motor with an agile 2.5-inch high-temperature voice coil, ensuring rapid transient response on stock vehicle electrical systems.

The driver features Free Flow Cooling motor vents, an extended pole piece, and a dual-layer spider system with integrated tinsel leads. A fiberglass-loaded non-pressed paper cone is anchored by a double-stitched EROM surround, providing 14 mm of linear Xmax and 30 mm of mechanical clearance. Specifications list a 39 Hz resonant frequency, a BL of 25 TM, a 6.53-inch mounting depth, and an 11.02-inch cutout diameter that requires a generous baffle opening.

This model is ideal for everyday commuters and budget-conscious builders who want DD Audio reliability on a modest 400-watt amplifier without altering their electrical system. However, its 14 mm Xmax and 500-watt power ceiling limit extreme low-frequency output. When cabinet baffle area is severely constrained but higher power handling is mandatory, installers should consider the ultra-dense Digital Designs DD Audio 608F-D4 8″.

05 Digital Designs DD Audio 608F-D4 8" for Compact High-Excursion Applications

The Digital Designs DD Audio 608F-D4 8″ demonstrates how DD Audio packs competition-level motor engineering into a miniature footprint. Built with an effective 6.5-inch piston diameter, this compact subwoofer carries a formidable 1000-watt RMS thermal rating and a 3000-watt peak limit. Its F-revision platform incorporates a cast-aluminum basket and enhanced thermal management featuring an aluminum heat sink and thermal transfer insert paired with back plate coil gap venting.

To withstand severe mechanical stress in tight cabinets, the 608F-D4 uses a triple-layer deep bass spider system, an extended pole piece, and a 2.5-inch high-temperature voice coil. A glass fiber and natural pulp cone is joined to a taller double-stitched EROM surround, achieving 18 mm of linear Xmax and a massive 60 mm mechanical clearance (Xmech). With an Fs of 38 Hz, a Qts of 0.46, and a Vas of 7.4 liters, it delivers tremendous mechanical authority in small chambers.

This compact powerhouse suits custom center consoles and behind-seat truck boxes where a ten-inch driver cannot physically mount. Enthusiasts evaluating a dd audio 8 inch subwoofer against larger drivers will appreciate its 1000-watt power handling and durable triple-layer suspension. However, an 8-inch cone radiates less physical surface air than a 10-inch cone. When space allows, listeners seeking broader air displacement should choose a full ten-inch model like the SL710-D2 or 510E-D4.

How to Choose the Right DD Audio 10-Inch Subwoofer

Conducting a thorough dd audio subwoofer comparison involves balancing power handling, physical mounting dimensions, and enclosure airspace against your vehicle layout and electrical charging capacity. To determine which dd audio subwoofer to buy, first calculate your amplifier’s clean continuous RMS wattage at the specific load your voice coils will present. Drivers like the 310E-D4 operate efficiently on 250 to 500 watts RMS, making them ideal for factory electrical systems. In contrast, the 700-watt 510E-D4, the 1000-watt SL710-D2, and the 1800-watt 710G-D4 require matching high-output amplifiers to perform without inducing distortion.

Enclosure volume and port area are equally critical for performance and driver longevity. DD Audio subwoofers depend on proper air spring resistance to control excursion. The SL710-D2 offers remarkable flexibility, performing inside 0.5 to 1.0 cubic foot sealed enclosures or 0.5 to 1.25 cubic foot ported boxes. Conversely, the 510E-D4 demands a dedicated 1.25 to 1.5 cubic foot net ported enclosure to support its lower acoustic tuning. Off-the-shelf enclosures, such as a basic prefabricated skar 10 inch subwoofer box, often feature undersized vent cross-sections that cause port chuffing and reduced output with high-displacement DD Audio drivers.

Mounting depth and baffle cutout specifications must be checked prior to enclosure fabrication. While the SL710-D2 requires only 5.125 inches of depth, the 510E-D4 needs 5.9 inches and the 310E-D4 requires 6.53 inches alongside an oversized 11.02-inch cutout diameter. Furthermore, DD Audio Free Flow cooling vents require at least one inch of breathing clearance behind the motor back plate.

Finally, assess vehicle electrical stability. While entry and mid-tier models run smoothly on stock alternators, the 45-pound 710G-D4 draws heavy current at full output. Powering competition-grade subwoofers without voltage drop requires an upgraded high-output alternator, heavy copper wiring, and an auxiliary battery bank to prevent voice coil overheating caused by amplifier clipping.
