Traxxas has established an enduring reputation across the radio-control hobby for building rugged, high-performing ready-to-run platforms, and its proprietary steering actuators form the mechanical backbone that keeps these vehicles tracking accurately under brutal trail conditions. Finding the right traxxas steering servo is essential for maintaining control authority, as large off-road tires, high-speed impacts, and moisture continuously challenge internal gear teeth and electronic drive circuits.
Across this lineup, the units differ substantially in internal gear construction, torque output ranging from 80 to 400 ounce-inches, analog versus digital circuitry, and application-specific wire lengths tailored to distinct vehicle chassis.
Traxxas RC steering servos Compared
| Model | Torque Rating | Transit Speed | Gear and Bearing Type | Motor and Spline Specs |
|---|---|---|---|---|
| Traxxas E-MAXX Brushless 2075 SERVO Waterproof | 125.0 oz-in at 6.0V | 0.16 sec at 60 degrees | Not listed (plastic housing) | Digital motor, J style connector |
| SERVO HIGH-Torque Waterproof | 80 oz-in | 0.23 sec at 60 degrees | Plastic gears, bushings not listed | Analog motor, plastic housing |
| Traxxas 2075R Digital High Speed Torque | 125 oz-in at 6V | Not listed (High Speed) | Metal gears, ball bearing | Digital controller, battery powered |
| Traxxas 2255 Servo Digital High-torque 400 | 400 oz-in at 6.0V | 0.15 sec at 60 degrees | Metal gears, dual ball bearings | Brushless motor, 25T output spline |
| Traxxas 2075X Waterproof All Metal Gears | 125 oz-in | 0.17 sec at 60 degrees | Metal gears, ball bearings | Digital controller, standard spline |
| Traxxas 2075 Digital High-Torque Waterproof Servo | 125 oz-in | 0.17 sec at 60 degrees | Plastic gears, ball bearing | Digital controller, J style connector |

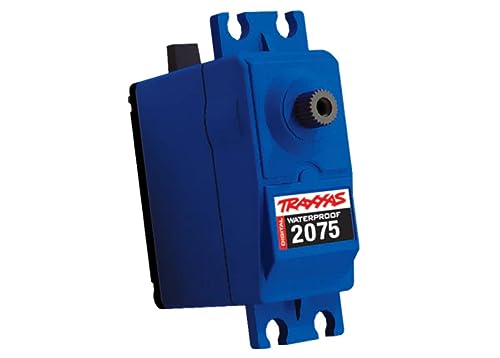

Traxxas E-MAXX Brushless 2075 SERVO Waterproof for Dual-Steer Monster Trucks
Best for: Dual-servo monster trucks with short lead needs
Pros
- 125 oz-in torque output
- Waterproof three-piece casing
- Fast 0.16s transit speed
Cons
- Short 9-inch wire length
- Plastic internal gears
The Traxxas E-MAXX Brushless 2075 SERVO Waterproof is a specialized variant of the standard 2075 design, engineered with specific dimensions and lead lengths for specific large-scale chassis. Packaged in a blue three-piece waterproof case, this digital actuator produces 125.0 ounce-inches (9.00 kg-cm) of torque at 6.0 volts with an operating speed of 0.16 seconds across 60 degrees. The listing documents exterior case dimensions of 55.1mm by 20.1mm by 38.1mm tall, with core body measurements specified at 41mm in length, 20mm in width, and 42.3mm in height.
Wiring configuration is the critical factor when considering this model. The listing specifies that the length of wire is 9 inches and notes an essential restriction: it is not for use on Slash or Rustler models because the wire is too short. It is designed to fit dual-servo and compact layouts including the E-Maxx Brushless, E-Revo, Summit 3908, T-Maxx, VXL Stampede, and OX-1. While the three-piece plastic case shields internal components from water intrusion, the internal gear train relies on standard composite teeth that can strip if extreme wheel jolts bypass the vehicle servo saver.
This servo suits hobbyists restoring or maintaining Traxxas monster trucks that require dual-servo configurations with shorter, clutter-free wire management inside the receiver box. Drivers seeking an upgrade for longer two-wheel-drive or four-wheel-drive short-course trucks must look elsewhere due to the restrictive 9-inch wire reach.
SERVO HIGH-Torque Waterproof for Entry-Level Basher Replacement
Best for: Basic replacement in lightweight 2WD sport bashers
Pros
- Waterproof factory enclosure
- Direct drop-in fitment
- Included product manual
Cons
- Low 80 oz-in torque
- Slow 0.23s transit time
The SERVO HIGH-Torque Waterproof, identified by part numbers 2056 and TRA2056, serves as the baseline analog steering actuator for entry-level Traxxas ready-to-run models. Enclosed in a blue plastic waterproof case, this unit generates 80 ounce-inches of torque and features a transit time of 0.23 seconds per 60 degrees. Designed as factory replacement hardware, the package includes the standard product manual for straightforward chassis installation.
Assessing mechanical responsiveness under sustained steering force is critical across all remote control hardware. In a manner similar to the precision demands explored in our thrustmaster steering wheel ps5 coverage, remote steering actuators face intense counter-directional torque when maneuvering through rough terrain. The traxxas 2056 waterproof servo features an all-plastic internal gear composition that works adequately under light loads but remains prone to stripped teeth if larger off-road tires hit immovable obstacles. Crucially, the listing specifies an explicit warranty description of no warranty, meaning damaged gears or burnt motors require complete component replacement by the owner.
This entry-level unit suits budget-conscious users seeking an exact replacement for lightweight, stock two-wheel-drive buggies and stadium trucks operating on flat dirt or pavement. Whenever higher speeds, heavier tire packages, or demanding trail obstacles are involved, stepping up to a high-torque digital alternative becomes necessary.
Traxxas 2075R Digital High Speed Torque for Rapid Track Response
Best for: Track racing requiring metal gear impact resistance
Pros
- Durable metal gear train
- Smooth ball bearing support
- Digital high-speed response
Cons
- Listing omits exact speed
The Traxxas 2075R Digital High Speed Torque actuator is engineered for radio-control drivers who require accelerated transit response alongside enhanced gear strength. Producing 125 ounces of torque at 6 volts, this digital unit upgrades the traditional 2075 design by incorporating a hardened metal gear set supported by an internal ball bearing within a blue waterproof housing. Cataloged as part TRX2075R, it utilizes high-speed digital processing circuitry to maintain swift, precise control commands.
The primary reliability advantage of this traxxas metal gear servo is its resilience against sudden shock loads. Where standard plastic gear teeth tend to shear off during high-speed barrier clipping or hard front-wheel landings, the metal gear train inside the 2075R absorbs abrupt mechanical impacts. The listing notes the component is battery powered and designated for users 14 years of age and older, though it does not specify an exact numeric transit speed in seconds beyond its high-speed classification.
This servo suits track racers and aggressive short-course bashers who prioritize steering response and gear longevity in lightweight to mid-weight vehicles.
Traxxas 2255 Servo Digital High-torque 400 for Extreme Monster Truck Duty
Best for: Heavy 1/10 monster trucks and competition crawlers
Pros
- Massive 400 oz-in torque
- Durable brushless motor
- Aluminum heatsink case
Cons
- Requires 25T servo horn
The Traxxas 2255 Servo Digital High-torque 400 represents the brand’s premier heavy-duty steering actuator, engineered specifically to eliminate steering fade and gear failure in massive builds. Operating across an input range of 6.0 to 7.4 volts DC, this high-performance red unit yields an immense 400 ounce-inches of torque at 6.0 volts alongside a transit speed of 0.15 seconds per 60 degrees. Weighing 64 grams, it features a brushless motor, digital controller, full metal gears, dual ball bearings, and a rigid aluminum center case.
Thermal control and gear train durability are prime strengths of this design. The central aluminum case functions as an efficient heatsink, drawing heat away from the brushless motor under intense workloads. The listing confirms full compatibility with Traxxas Stability Management, a system that subjects steering servos to continuous, rapid micro-adjustments that can overheat lesser motors. In parallel with the mechanical feedback mechanisms detailed in our logitech wheel for xbox evaluations, intense steering loads require robust physical linkages. To withstand these forces, the 2255 utilizes a heavy-duty 25T output spline, which differs from standard factory splines and necessitates a 25-tooth servo horn.
For standard lightweight buggies or casual neighborhood running, its high output and unique spline requirements exceed everyday requirements.
Traxxas 2075X Waterproof All Metal Gears for Rigorous Trail Crawling
Best for: Trail rigs and rock crawlers preventing stripped gears
Pros
- All-metal gear reliability
- Factory waterproof casing
- Smooth dual ball bearings
Cons
- Standard 0.17s transit speed
The Traxxas 2075X Waterproof All Metal Gears servo is engineered as the direct, bulletproof upgrade over stock composite units in trail vehicles. Rated at 125 ounce-inches of torque with a transit time of 0.17 seconds across 60 degrees, this black-cased digital servo integrates a full metal gear train and ball bearings into a factory-sealed waterproof housing. Cataloged as model 2075X, the listing highlights its connection to vehicles such as the TRX-4 Desert platform.
The critical reliability upgrade in the traxxas 2075 vs 2075x comparison is the elimination of stripped gear teeth in high-traction binds. Trail crawlers routinely wedge front wheels between rocks, generating extreme rotational back-torque that breaks plastic teeth. The all-metal gears of the 2075X endure these static binds without skipping or shearing, while the ball bearings prevent shaft deflection. The package includes one servo and one connector, dropping into standard factory chassis mounts without modification.
This servo suits trail truck hobbyists and rock crawler drivers needing dependable, metal-geared steering that drops directly into factory locations. If your driving style involves high-speed racing where split-second transit times under 0.15 seconds are required, the 2075R or brushless 2255 serve as better performance choices.
Traxxas 2075 Digital High-Torque Waterproof Servo for Factory-Standard Maintenance
Best for: Direct factory replacement in standard RTR models
Pros
- 125 oz-in standard torque
- Smooth ball bearing output
- Factory waterproof sealing
Cons
- Vulnerable plastic gears
The Traxxas 2075 Digital High-Torque Waterproof Servo (part number 2075) is the primary stock actuator installed across a wide range of Traxxas ready-to-run vehicles. Producing 125 ounce-inches of torque with an operating transit time of 0.17 seconds per 60 degrees, this unit features a digital circuit board and an output ball bearing housed within a sealed blue waterproof case. Weighing 1.58 ounces, it connects through a standard Futaba J style connector.
Evaluating steering responsiveness and gear stability aligns closely with controller assessments such as our turtle beach wheel hardware reviews, where precise physical components govern overall handling. Factory O-ring gaskets keep the 2075 fully protected against water, slush, and dirt. However, because the gear assembly inside relies on plastic gears, high-impact front-wheel collisions can shear teeth if the chassis servo saver is locked down too tight.
This model suits drivers who need a factory-exact replacement for a broken original unit in lightweight stadium trucks, short-course vehicles, or sport buggies. When running high-traction surfaces or oversized wheels, stepping up to the metal-geared 2075X provides superior protection against stripped gears.
How to Choose the Right Traxxas RC steering servos
Selecting the correct traxxas steering servo upgrade requires balancing torque output, gear durability, transit speed, and chassis physical dimensions. Conducting a thorough traxxas servo comparison ensures you pick an actuator that handles your vehicle’s mechanical loads without risking sudden electronic burnout or stripped gears.
- Gear Material Longevity: Plastic gears operate smoothly and reduce component weight, but they represent the primary point of failure when wheels hit hard obstacles. Choosing a traxxas metal gear servo like the 2075R, 2075X, or 2255 ensures the drive train withstands rough impacts and technical terrain without shearing gear teeth.
- Transit Speed: Fast steering transit times allow rapid corrective counter-steering on loose dirt. The analog 2056 provides a slower transit speed of 0.23 seconds per 60 degrees, standard digital servos like the 2075 and 2075X clock in at 0.17 seconds, and the high-output 2255 achieves 0.15 seconds.
- Chassis Wiring and Output Spline Fitment: When determining which traxxas steering servo to buy, always check lead wire lengths and output spline counts. The Traxxas E-MAXX Brushless 2075 SERVO Waterproof features a short 9-inch wire that will not reach the receiver box on longer chassis like the Slash. Additionally, high-torque units like the 2255 use a 25T output spline rather than standard splines, requiring a compatible matching servo horn.
FAQ
What is the difference between the Traxxas 2075 vs 2075X?
The primary difference between the Traxxas 2075 and 2075X is the internal gear material. While both digital units deliver 125 ounce-inches of torque with a transit speed of 0.17 seconds per 60 degrees within a waterproof case, the standard 2075 uses plastic internal gears, whereas the 2075X features an all-metal gear train that resists stripped teeth under heavy impact.
Can the Traxxas 2255 operate on standard receiver voltage?
Yes, the Traxxas 2255 Servo Digital High-torque 400 has an operating voltage range of 6.0 to 7.4 volts DC. It operates properly on standard 6.0V receiver power, delivering its rated 400 ounce-inches of torque, though running it at 7.4V allows the brushless motor to maximize speed and efficiency.
Why does the Traxxas E-MAXX 2075 servo not fit a Slash or Rustler?
The Traxxas E-MAXX Brushless 2075 SERVO Waterproof is fitted with a 9-inch wire lead. On vehicles with longer chassis layouts such as the Slash or Rustler, the distance between the servo mounting tray and the waterproof receiver box exceeds 9 inches, preventing the lead from plugging into the receiver without an extension.
How does a ball bearing improve steering servo reliability?
Ball bearings, included on models such as the Traxxas 2075, 2075R, 2075X, and 2255, support the primary output shaft to minimize friction and prevent radial play. By keeping the output gear properly aligned under lateral loads, ball bearings stop internal gears from separating and stripping under extreme trail forces.
Does the Traxxas 2056 waterproof servo have warranty coverage?
According to the product specifications for part number 2056, the SERVO HIGH-Torque Waterproof listing explicitly states Warranty Description: No Warranty. Users must ensure their vehicle servo saver is adjusted properly to prevent stripped gears and mechanical failure during aggressive runs.
